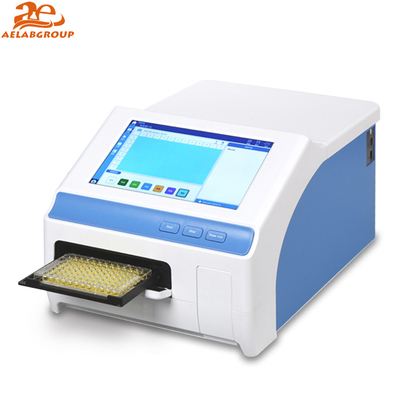

Model | AE-FlexA-200 |
Display | 10 inch touch screen |
Light source | Quartz-halogen lamp |
Wavelength range | 200 - 1000 nm with 1 nm steps |
Wavelength Accuracy | ±2 nm |
Tepetition | ±0.2 nm |
Wavelength selection | Monochromator |
Read-out range | 0 - 4.0 OD |
bottle | 3 pcs 2.5L washing bottle, 1pcs 2.5L waste bottle |
Half-bandwidth of filters | <2.5 nm |
Detector | two silicon photoelectric detector, one for measurement, another for reference |
Linearity @450nm | 0 - 2.5 Abs，±2% (96 well plates) |
Accuracy @450nm | 1.0% + 0.005 Abs (0 - 2.0 Abs)；2.0% [2.0 - 2.5 Abs) |
Precision @450nm | CV < 0.5% accurate model；CV < 1.0% fast mode |
Test speed | 10 seconds with 96-well plate (fast mode); 30 seconds with 96-well plate (accurate model) |
Plate shaking | Linear; three options for speed |
Test speed | 15 seconds with 96-well plate (single wavelength); 30 seconds with 96-well plate (double wavelength) |
Incubator | From ambient + 5℃to 45℃ |
UI | Integrated software or PC control software |
Analysis software | ReaderIt-II |
User interface | Touch screen, android system, 10 inch touch screen, external keyboard mouse |
Storage | 16G memory, more than 10,000 test records can be stored |
Ports | 3 USB ports, for PC, printer and USB-disk |
Automated systems | Temporarily unable compatible with automated systems |
Power supply | DC24V 6.5A |
Dimensions(W×D×H) | 300×500×290mm |
Weight | 15kg |
